Part number: 2N80
Manufacturer: Inchange Semiconductor
File Size: 62.16KB
Download: 📄 Datasheet
Description: N-Channel MOSFET Transistor

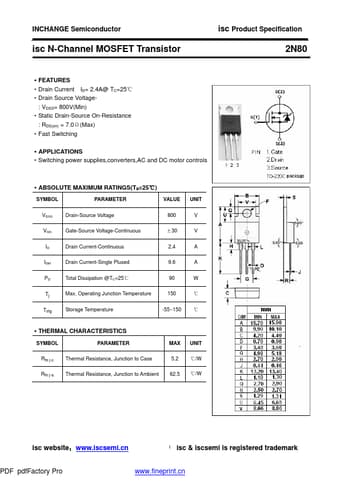

*Drain Current ID= 2.4A@ TC=25℃
*Drain Source Voltage-
: VDSS= 800V(Min)
*Static Drain-Source On-Resistance
: RDS(on) = 7.0Ω(Max)
*Fast Switching
*APP.
*Switching power supplies,converters,AC and DC motor controls
*ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAME.
