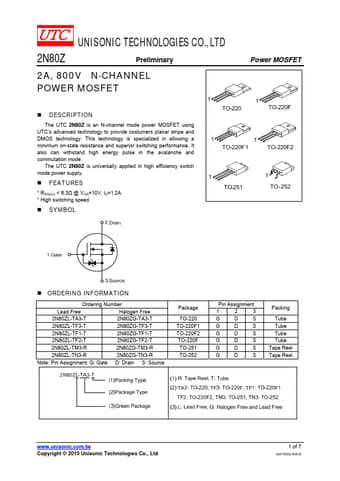

2N80Z Datasheet, mosfet equivalent, Unisonic Technologies

2N80Z Features

• Mosfet
• RDS(on) < 6.3Ω @ VGS=10V, ID=1.2A
• High switching speed
• SYMBOL Power MOSFET
• ORDERING INFORMATION Ordering Number Lead Free Halogen Free 2N80

PDF File Details

Part number:

2N80Z

Manufacturer:

Unisonic Technologies

File Size:

267.77kb

Download:

📄 Datasheet

Description:

800v n-channel power mosfet. The UTC 2N80Z is an N-channel mode power MOSFET using UTC’s advanced technology to provide costumers planar stripe and DMOS technolog
