U74AHCT157 Datasheet, Selector/multiplexer, Unisonic Technologies

✔ U74AHCT157 Features

TTL-Voltage Compatible
Max tPD of 4.1ns from A or B to Y at 5V, CL=15pF
Low Quiescent Current: ICC = 2 μA (MAX) at 5.5V
±8 mA output driver at 5V CMOS IC
ORDE

PDF File Details

Unisonic Technologies manufacturer logo

Part number:

U74AHCT157

Manufacturer:

Unisonic Technologies

File Size:

223.96kb

Download:

📄 Datasheet

Description:

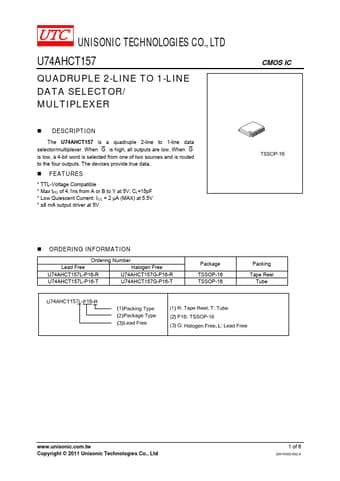

Quadruple 2-line to 1-line data selector/multiplexer. The U74AHCT157 is a quadruple 2-line to 1-line data selector/multiplexer. When G is high, all outputs are low. When G is low, a 4-bit

📥 Download PDF (223.96kb)
