CHA2391

36-40GHz Very Low Noise Amplifier

CHA2391 Features

* Broad band performance 36-40GHz

* 2.5dB noise figure, 36-40GHz

* 15dB gain, ± 0.5dB gain flatness

* Low DC power consumption, 50mA

* 20dBm 3rd order intercept point

* Chip size: 1.67 x 1.03 x 0.1mm Main Characteristics Tamb = +25°C 20 5 16 4 12 3 82 41 00 30 31 32 33 34 35

CHA2391 General Description

The CHA2391 is a two-stage wide band monolithic low noise amplifier. The circuit is manufactured with a standard pHEMT process: 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in chip form. IN Vd 50 25 OUT Vg 1 Vg 2 Gain (dB) .

CHA2391 Datasheet (116.88 KB)

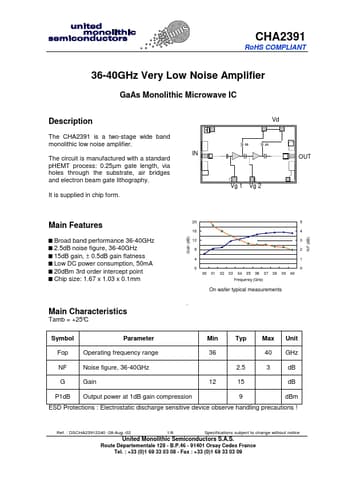

Preview of CHA2391 PDF

Datasheet Details

Part number:

CHA2391

Manufacturer:

United Monolithic Semiconductors

File Size:

116.88 KB

Description:

36-40ghz very low noise amplifier.
