CHA2394 Datasheet, Amplifier, United Monolithic Semiconductors

CHA2394 Features

  • Amplifier
  • Broadband performances: 36-40GHz
  • 2.5dB Noise Figure
  • 21dB gain
  • ±1.5dB gain flatness
  • Low DC power consumption, 60mA @ 3.5V
  • Chip

PDF File Details

Part number:

CHA2394

Manufacturer:

United Monolithic Semiconductors

File Size:

120.75kb

Download:

📄 Datasheet

Description:

36-40ghz very low noise high gain amplifier. The CHA2394 is a three-stage monolithic low noise amplifier. It is designed for a wide range of applications, from military to commer

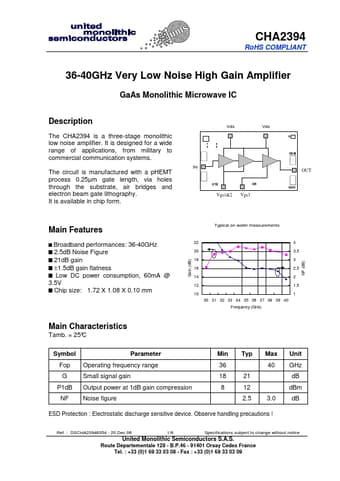

Datasheet Preview: CHA2394 📥 Download PDF (120.75kb)
Page 2 of CHA2394 Page 3 of CHA2394

CHA2394 Application

  • Applications from military to commercial communication systems. The circuit is manufactured with a pHEMT process 0.25µm gate length, via holes thro
