ST2302 - N-Channel MOSFET

ST2302 Description

ST2302 ST2302 Datasheet www.VBsemi.com N-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.028 at VGS = 4.5 V 20 0.042 at VGS =.

ST2302 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

ST2302 Applications

* DC/DC Converters
* Load Switch for Portable Applications Top View ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID TA

📥 Download Datasheet

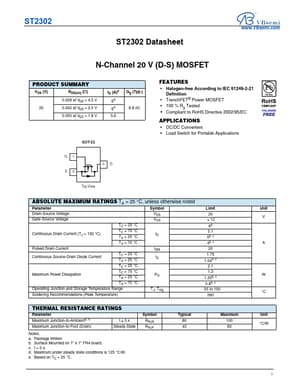

Preview of ST2302 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST2302
Manufacturer
VBsemi
File Size
325.60 KB
Datasheet
ST2302-VBsemi.pdf
Description
N-Channel MOSFET
