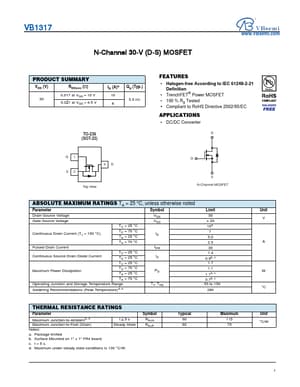

datasheet Preview Page 1 from Datasheet4u.com

VB1317 N-Channel 30V MOSFET

VB1317 N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.017 at VGS = 10 V 30 0.021 at VGS = 4.5 V ID (A)a 10 8 .

VB1317-VBsemi.pdf

VB1317 Datasheet Preview — Preview of VB1317 PDF

Datasheet Details

Part number:

VB1317

Manufacturer:

VBsemi

File Size:

286.33 KB

Description:

N-Channel 30V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* DC/DC Converter D G1 S2 3D Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °C
