VB1435 N-Channel MOSFET

VB1435 Description

VB1435 N-Channel 40 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS = 4.5 V ID (A) Configuration 40 0.035 0.040.

VB1435 Features

* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested www. VBsemi. com TO-236 (SOT-23) G1 S2 3D Top View D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain C

📥 Download Datasheet

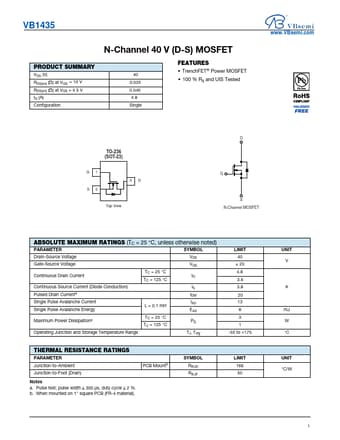

Preview of VB1435 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VB1435
Manufacturer
VBsemi
File Size
263.28 KB
Datasheet
VB1435-VBsemi.pdf
Description
N-Channel MOSFET
