VS3698AP, N-Channel Advanced Power MOSFET

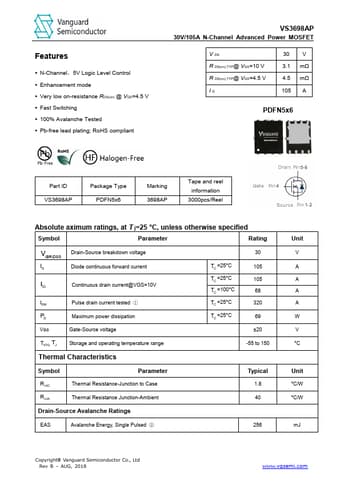

datasheet Preview Page 1 from Datasheet4u.com

VS3698AP-VanguardSemiconductor.pdf

VS3698AP Datasheet Preview — Preview of VS3698AP PDF

Datasheet Details

Part number:

VS3698AP

Manufacturer:

Vanguard Semiconductor

File Size:

1.12 MB

Description:

N-Channel Advanced Power MOSFET

Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Very low on-resistance RDS(on) @ VGS=4.5 V
* Fast Switching
* 100% Avalanche Tested
* Pb-free lead plating; RoHS compliant VS3698AP 30V/105A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS
