VS3604DT - N-Channel Advanced Power MOSFET

VS3604DT Description

.

VS3604DT Features

* N-Channel，5V Logic Level Control
* Very low on-resistance RDS(on) @ VGS=4.5 V
* Ultra-Low Gate Impedance
* 100% Avalanche Tested
* Pb-free lead plating; RoHS compliant VS3604DT 30V/300A N-Channel Advanced Power MOSFET V DS 30 V R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5V

📥 Download Datasheet

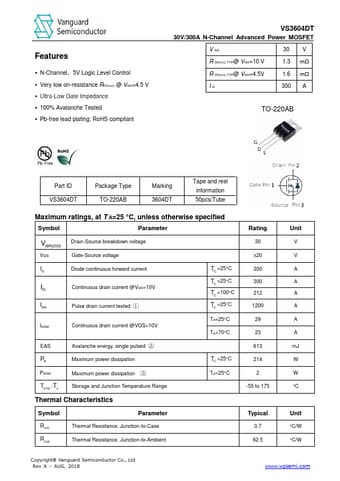

Preview of VS3604DT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3604DT
Manufacturer
Vanguard Semiconductor
File Size
640.73 KB
Datasheet
VS3604DT-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
