VS3604AT - N-Channel Advanced Power MOSFET

VS3604AT Description

.

VS3604AT Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Very low on-resistance RDS(on) @ VGS=4.5 V
* 100% Avalanche Tested
* Pb-free lead plating; RoHS compliant VS3604AT 30V/180A N-Channel Advanced Power MOSFET V DS 30 V R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V 2.1 mΩ

📥 Download Datasheet

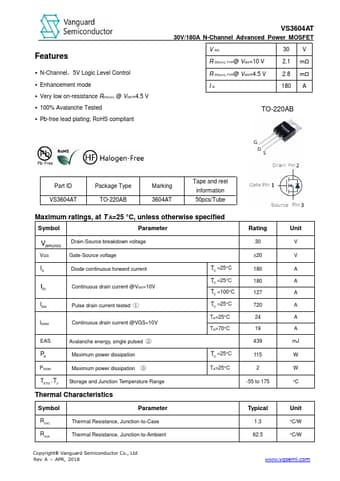

Preview of VS3604AT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3604AT
Manufacturer
Vanguard Semiconductor
File Size
632.67 KB
Datasheet
VS3604AT-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
