VS3606ATD - N-Channel Advanced Power MOSFET

VS3606ATD Description

.

VS3606ATD Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Very low on-resistance RDS(on) @ VGS=4.5 V
* 100% Avalanche Tested
* Pb-free lead plating; RoHS compliant VS3606ATD 30V/140A N-Channel Advanced Power MOSFET V DS 30 V R @DS(on),TYP VGS=10 V 3 mΩ R @DS(on),TYP VGS=4.5V

📥 Download Datasheet

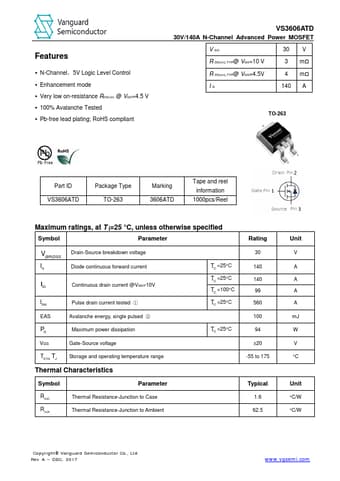

Preview of VS3606ATD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3606ATD
Manufacturer
Vanguard Semiconductor
File Size
397.43 KB
Datasheet
VS3606ATD-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
