RD030100, RD045120 Datasheet - Vishay Siliconix

RD030100 - Tubular Capacitors

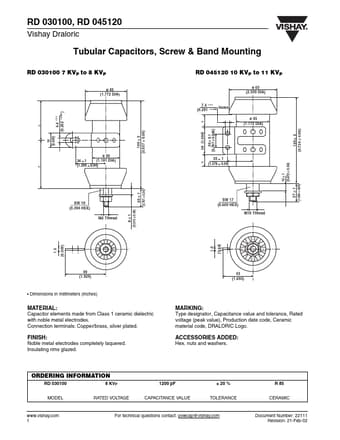

RD 030100, RD 045120 Vishay Draloric Tubular Capacitors, Screw & Band Mounting RD 030100 7 KVP to 8 KVP ø 45 (1.772 DIA) 7.4 + 0.2 Holes (0.291 + 0.008) ø 45 (1.772 DIA) RD 045120 10 KVP to 11 KVP ø 65 (2.559 DIA) 6.4 + 0.2 (0.252 + 0.008) = = 100 ± 2 (3.937 ± 0.08) 12 ± 1 (0.472 ± 0.04) M10 Thread 43 (1.693) ø 30 (1.181 DIA) 34 ± 1 (1.339 ± 0.04) = 35 ± 1 (1.378 ± 0.04) = 20 ± 1 (0.787 ± 0.04) M6 Thread 8 ±1 (0.315 ± 0.04) SW 10 (0.394 HEX) SW 17 (0.669 HEX) www.DataSheet.net/ .
