SUP85N06-05 Datasheet - Vishay Siliconix

SUP85N06-05 N-Channel MOSFET

SUP/SUB85N06-05 New Product Vishay Siliconix N-Channel 60-V (D-S) 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 60 rDS(on) (W) 0.0052 @ VGS = 10 V 0.0072 @ VGS = 4.5 V ID (A) "85 a TO-220AB D TO-263 G DRAIN connected to TAB G G D S Top View SUP85N06-05 D S S N-Channel MOSFET Top View SUB85N06-05 ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetitiv.

SUP85N06-05 Datasheet (49.24 KB)

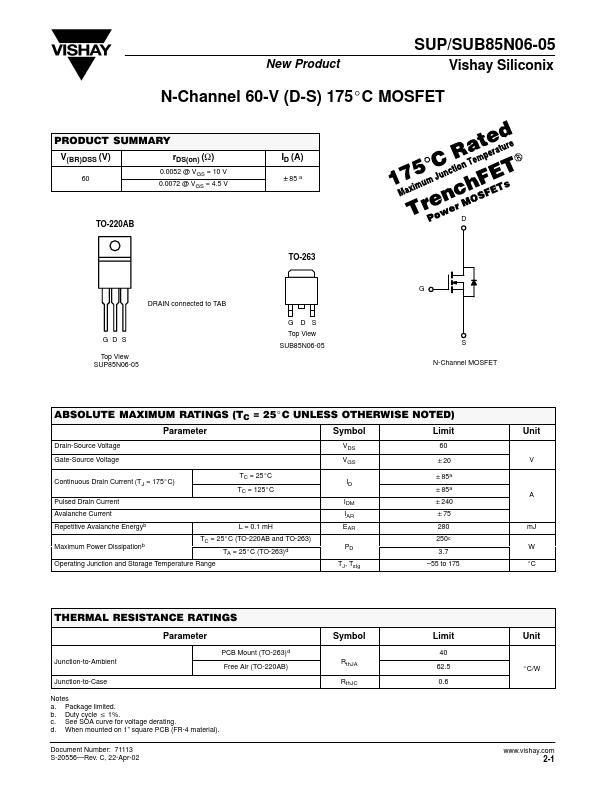

Preview of SUP85N06-05 PDF

Datasheet Details

Part number:

SUP85N06-05

Manufacturer:

Vishay ↗ Siliconix

File Size:

49.24 KB

Description:

N-channel mosfet.

📁 Related Datasheet

SUP85N03-04P N-Channel MOSFET (Vishay Siliconix)

SUP85N03-07P N-Channel MOSFET (Vishay Siliconix)

SUP85N03-3m6P N-Channel 30-V (D-S) MOSFET (Vishay)

SUP85N04-04 N-Channel MOSFET (Vishay Siliconix)

SUP85N08-08 N-Channel MOSFET (Vishay Siliconix)

SUP85N10-10 N-Channel MOSFET (Vishay Siliconix)

SUP85N10-10P N-Channel 100 V (D-S) MOSFET (Vishay)

SUP85N15-21 N-Channel MOSFET (Vishay Siliconix)

SUP80090E N-Channel MOSFET (Vishay)

SUP80N15-20L N-Channel MOSFET (Vishay Siliconix)

TAGS

SUP85N06-05 N-Channel MOSFET Vishay Siliconix

Image Gallery

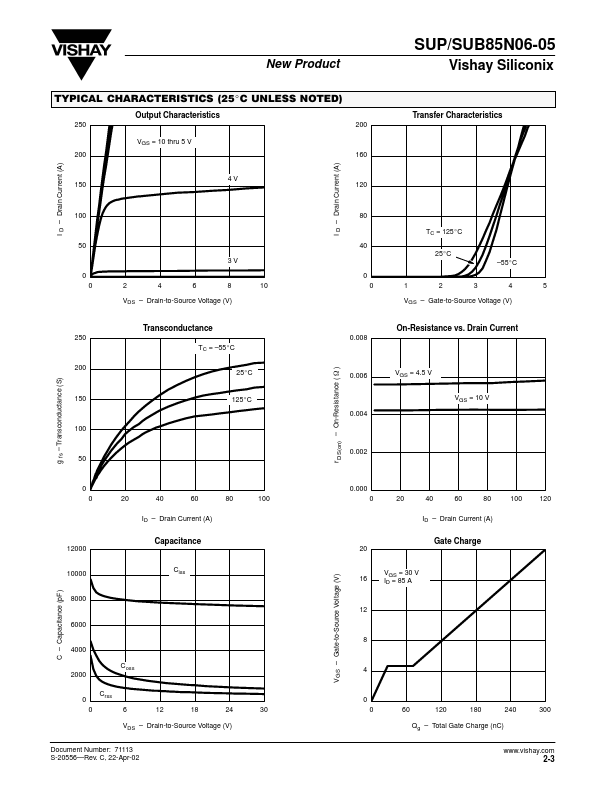

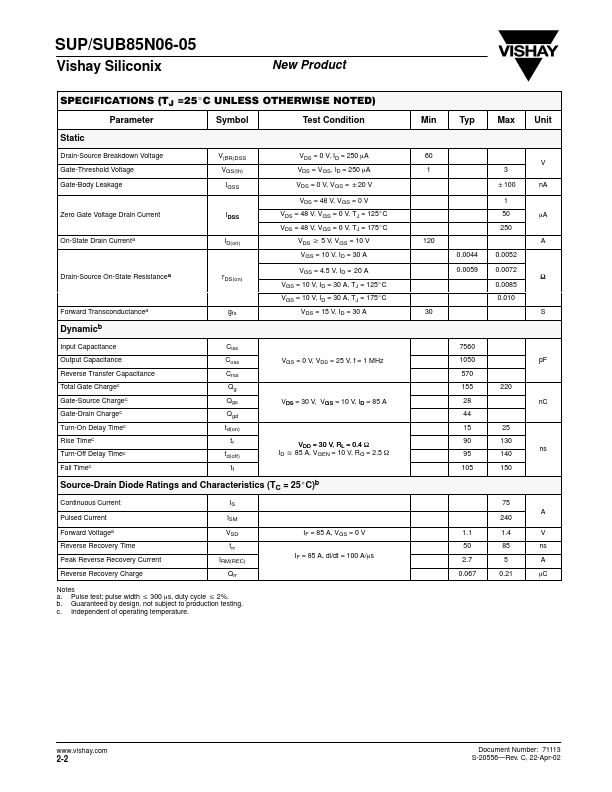

SUP85N06-05 Datasheet Preview Page 2 SUP85N06-05 Datasheet Preview Page 3
