SUP85N15-21 N-Channel MOSFET

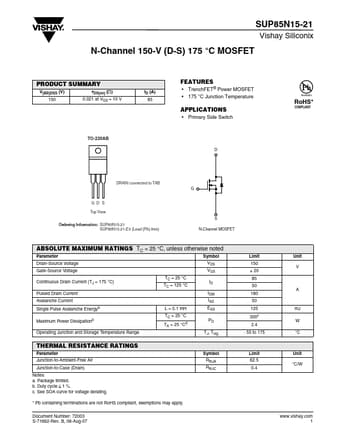

📥 Download Datasheet Datasheet Preview Page 1

Description

SUP85N15-21 Vishay Siliconix N-Channel 150-V (D-S) 175 °C MOSFET PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 150 0.021 at VGS = 10 V ID (A) 85 TO-2.

📥 Download Datasheet

Preview of SUP85N15-21 PDF

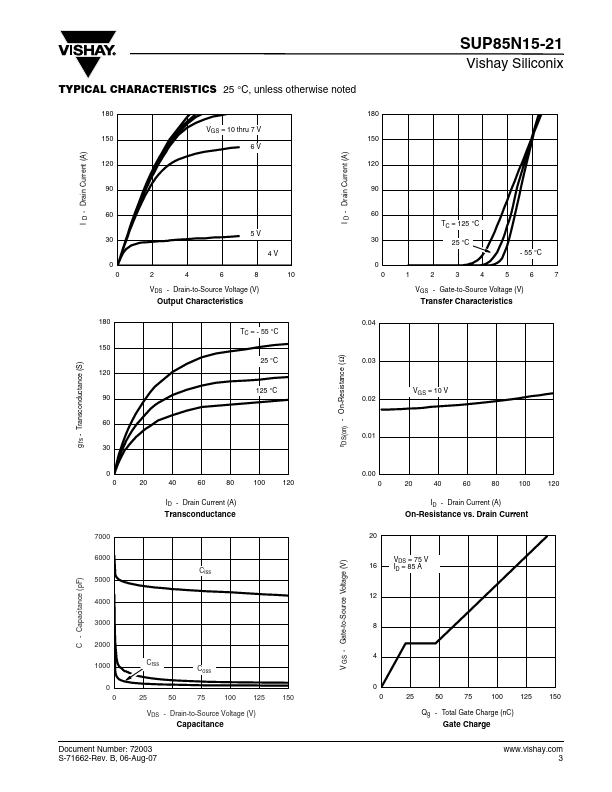

datasheet Preview Page 2 datasheet Preview Page 3

Features

* TrenchFET® Power MOSFET

Applications

* Primary Side Switch D Available RoHS
* COMPLIANT DRAIN connected to TAB GD S Top View Ordering Information: SUP85N15-21 SUP85N15-21-E3 (Lead (Pb)-free) G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gat
