SUP85N10-10 Datasheet - Vishay Siliconix

N-Channel MOSFET

SUP85N10-10 Features

* TrenchFET® Power MOSFET

* 175 °C Maximum Junction Temperature

* Compliant to RoHS Directive 2002/95/EC TO-263 D DRAIN connected to TAB GD S Top View SUP85N10-10 ORDERING INFORMATION Package TO-220AB TO-263 G DS Top View SUB85N10-10 G S N-Channel MOSFET Lead (Pb)-free S

SUP85N10-10 Datasheet (95.48 KB)

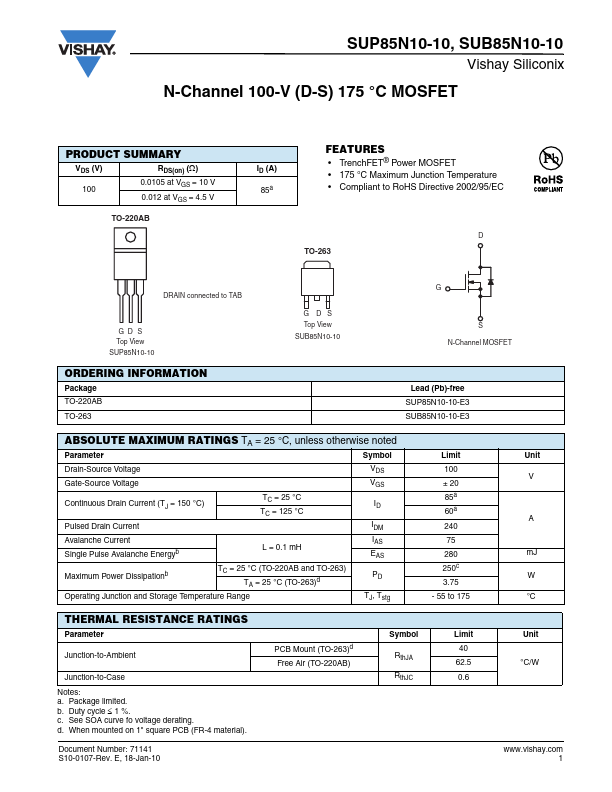

Preview of SUP85N10-10 PDF

Datasheet Details

Part number:

SUP85N10-10

Manufacturer:

Vishay ↗ Siliconix

File Size:

95.48 KB

Description:

N-channel mosfet.
SUP85N10-10, SUB85N10-10 Vishay Siliconix N-Channel 100-V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 100 0.0105 at VGS = 10 V 0.012 a.

📁 Related Datasheet

SUP85N10-10P N-Channel 100 V (D-S) MOSFET (Vishay)

SUP85N15-21 N-Channel MOSFET (Vishay Siliconix)

SUP85N03-04P N-Channel MOSFET (Vishay Siliconix)

SUP85N03-07P N-Channel MOSFET (Vishay Siliconix)

SUP85N03-3m6P N-Channel 30-V (D-S) MOSFET (Vishay)

SUP85N04-04 N-Channel MOSFET (Vishay Siliconix)

SUP85N06-05 N-Channel MOSFET (Vishay Siliconix)

SUP85N08-08 N-Channel MOSFET (Vishay Siliconix)

SUP80090E N-Channel MOSFET (Vishay)

SUP80N15-20L N-Channel MOSFET (Vishay Siliconix)

Stock and price

Distributor
Vishay Intertechnologies
SUP85N10-10-GE3
327 In Stock
Qty : 1000 units
Unit Price : $4.09

TAGS

SUP85N10-10 N-Channel MOSFET Vishay Siliconix

Image Gallery

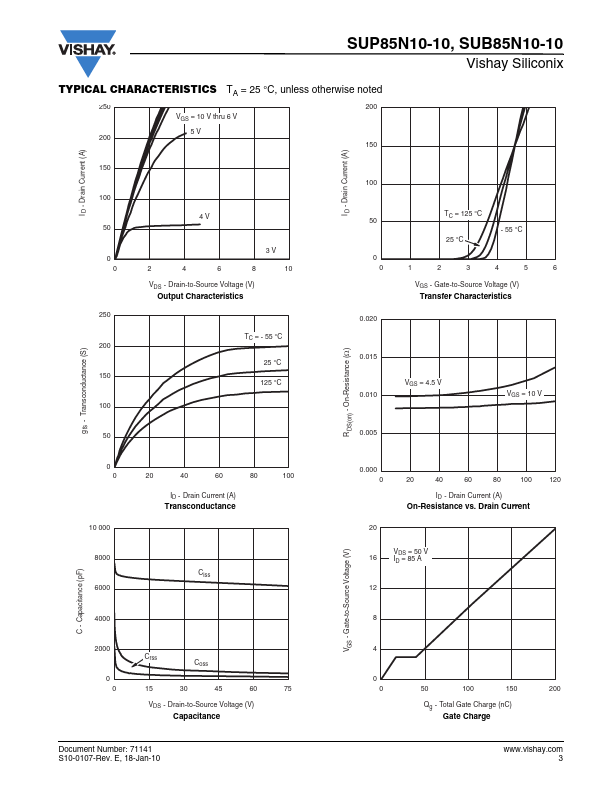

SUP85N10-10 Datasheet Preview Page 2 SUP85N10-10 Datasheet Preview Page 3
