SUP85N08-08 Datasheet - Vishay Siliconix

SUP85N08-08 N-Channel MOSFET

SUP/SUB85N08-08 New Product Vishay Siliconix N-Channel 75-V (D-S) 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 75 rDS(on) (W) 0.008 @ VGS = 10 V ID (A) 85 a TO-220AB D TO-263 G DRAIN connected to TAB G G D S Top View SUP85N08-08 D S S N-Channel MOSFET Top View SUB85N08-08 ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetitive Avalanche Energyb Max.

SUP85N08-08 Datasheet (64.23 KB)

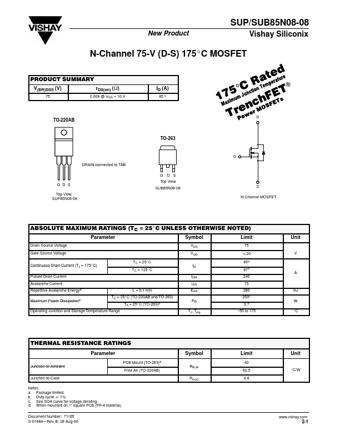

Preview of SUP85N08-08 PDF

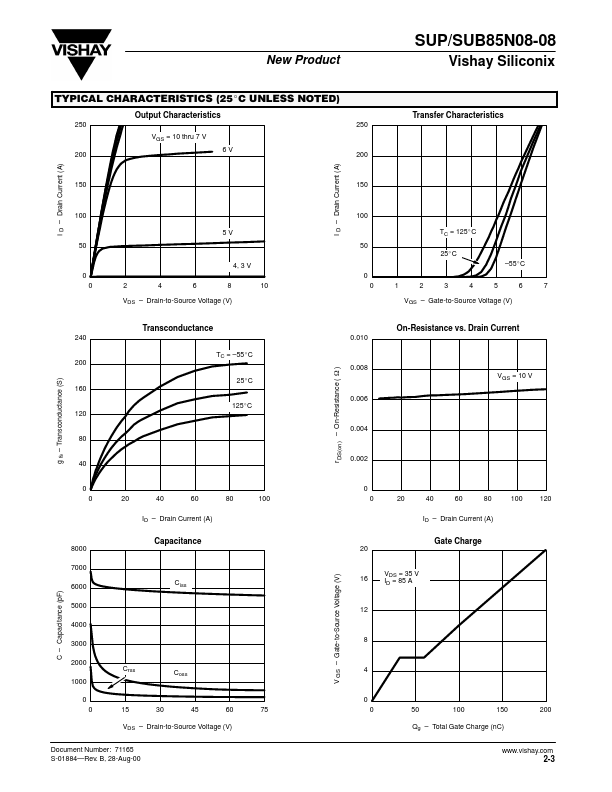

SUP85N08-08 Datasheet Preview Page 2 SUP85N08-08 Datasheet Preview Page 3

Datasheet Details

Part number:

SUP85N08-08

Manufacturer:

Vishay ↗ Siliconix

File Size:

64.23 KB

Description:

N-channel mosfet.
