IHLP-4040DZ-01 Datasheet - Vishay

IHLP-4040DZ-01-Vishay.pdf

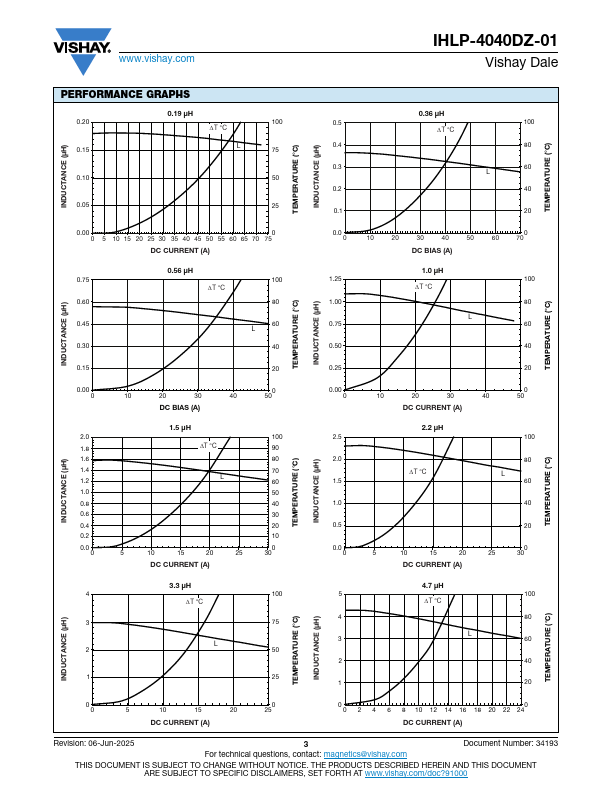

Preview of IHLP-4040DZ-01 PDF
IHLP-4040DZ-01 Datasheet Preview Page 2 IHLP-4040DZ-01 Datasheet Preview Page 3

Datasheet Details

Part number:

IHLP-4040DZ-01

Manufacturer:

Vishay ↗

File Size:

112.24 KB

Description:

Inductors.

IHLP-4040DZ-01, Inductors

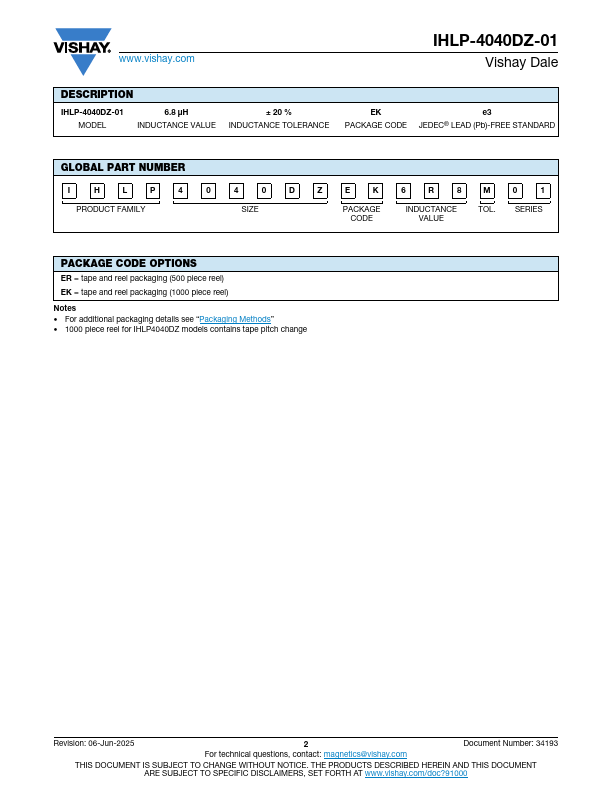

IHLP-4040DZ-01 6.8 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 4 0 4 0DZER6R8M0 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.

SERIES PATENT(S): www.vishay.com/patents This Vishay product is

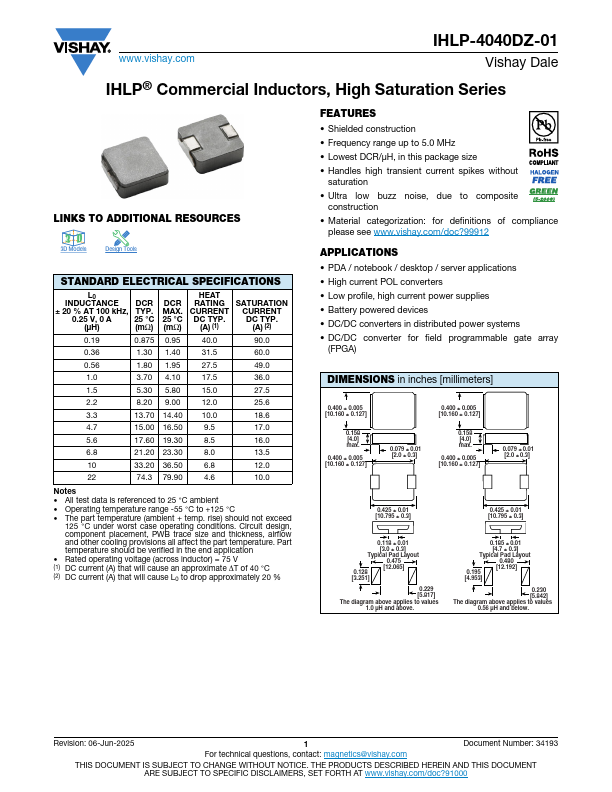

www.vishay.com IHLP-4040DZ-01 Vishay Dale IHLP® Commercial Inductors, High Saturation Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE DCR ± 20 % AT 100 kHz, TYP.

0.25 V, 0 A 25 °C (μH) (m) DCR MAX.

25 °C (m) HEAT RATING CURRENT DC TYP.

(A) (1) SATURATION CURRENT DC TYP.

(A) (2) 0.19 0.875 0.95 40.0 90.0 0.36 1.30 1.40 31.5 60.0 0.56 1.70 1.80 27.5 49.0 1.0 3.70 4.10 17.5

IHLP-4040DZ-01 Features

* Shielded construction

* Frequency range up to 5.0 MHz

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

* Ultra low buzz noise, due to composite construction

* IHLP design. PATENT(S): www.vishay.com/pat
