IHLP-4040DZ-1A, Inductors

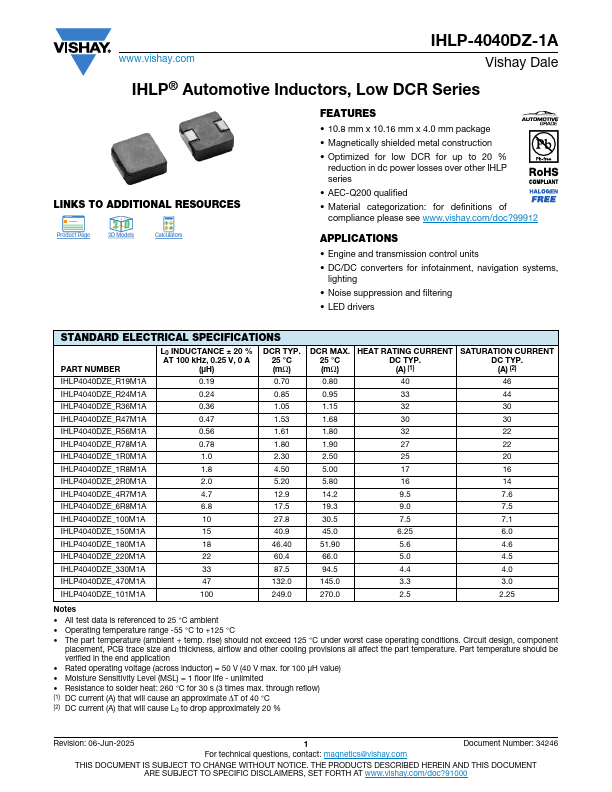

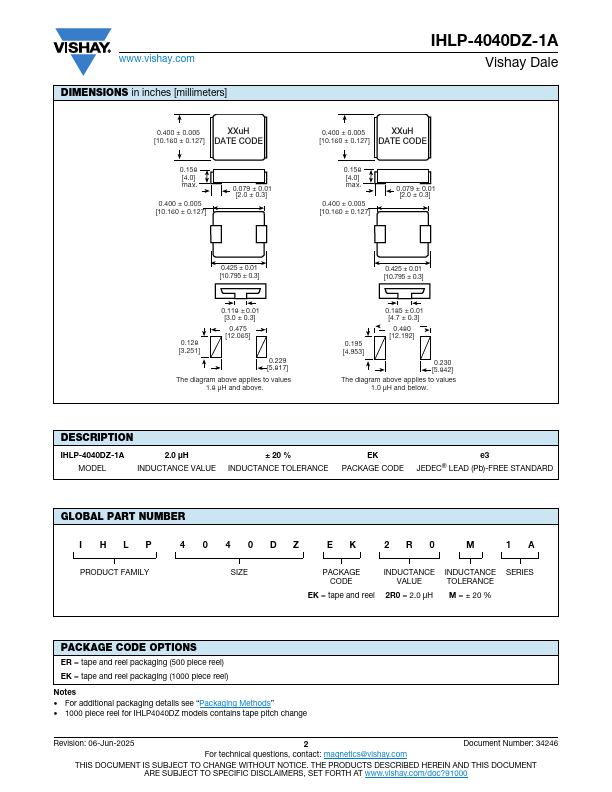

IHLP-4040DZ-1A 2.0 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L P 4 0 4 0 D Z E R 2 R 0 M 1 A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.

SERIES Revision: 26-Aug-15 1 Doc

www.vishay.com IHLP-4040DZ-1A Vishay Dale Low Profile, High Current IHLP® Inductors Manufactured under one or more of the following: US Patents; 6,198,375/6,204,744/6,449,829/6,460,244. Several foreign patents, and other patents pending.

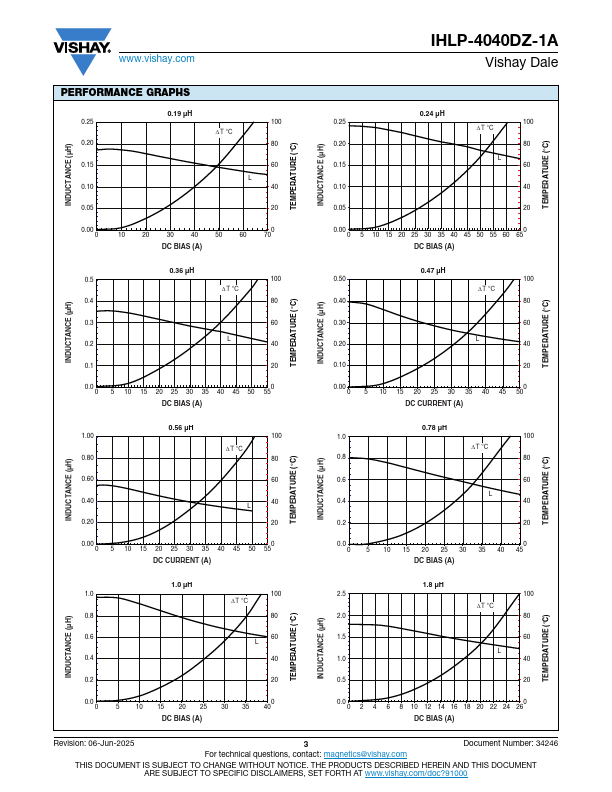

STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE DCR ± 20 % AT 100 kHz, TYP.

0.25 V, 0 A 25 °C (μH) (m) DCR MAX.

25 °C (m) HEAT RATING CURRENT DC TYP.

(A) (3) SATURATION CURRENT DC TYP.

(A) (4) 0.19 0.70 0.80 40 46 0.24 0.85 0.95 33 44

IHLP-4040DZ-1A Features

* Shielded construction

* Frequency range up to 1.0 MHz

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

* Ultra low buzz noise, due to composite construction

* AEC-Q200 qualified

* Material categ
