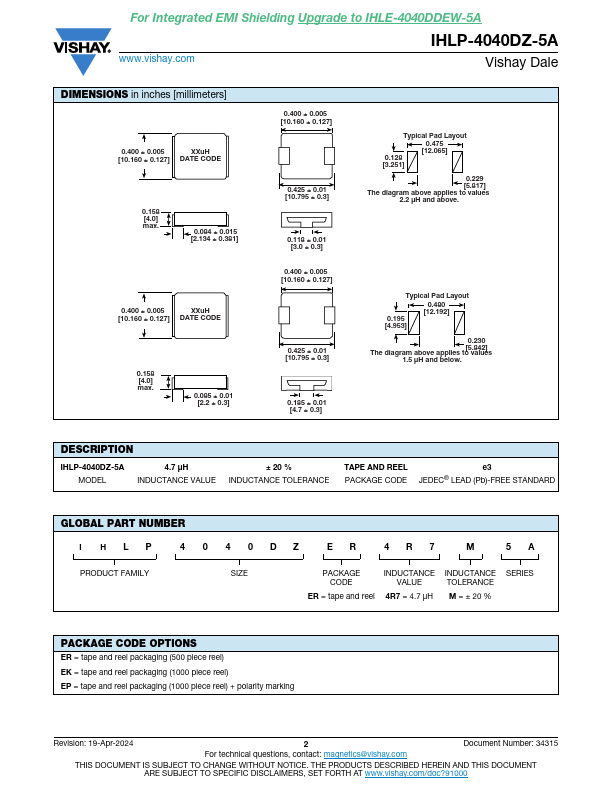

IHLP-4040DZ-5A 4.7 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L P 4 0 4 0 D Z E R 4 R 7 M 5 A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES Revision: 03-Jan-2017 1 D.

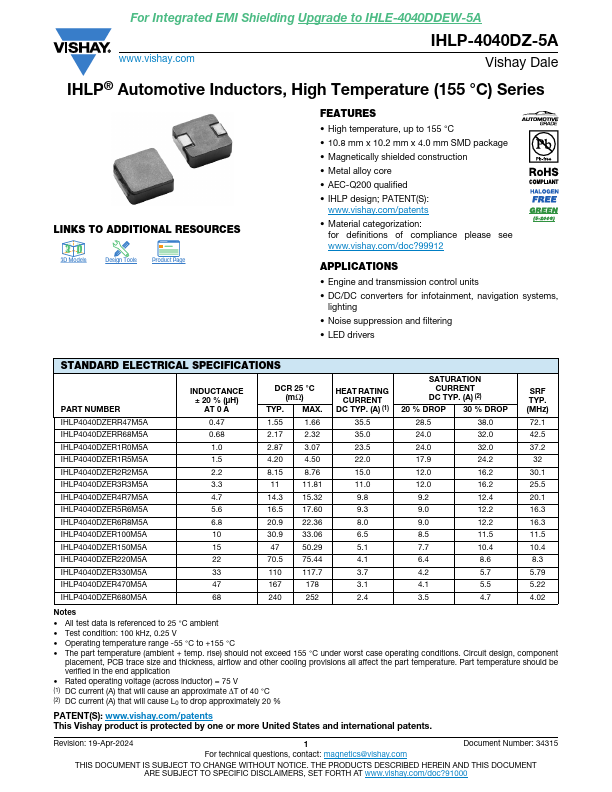

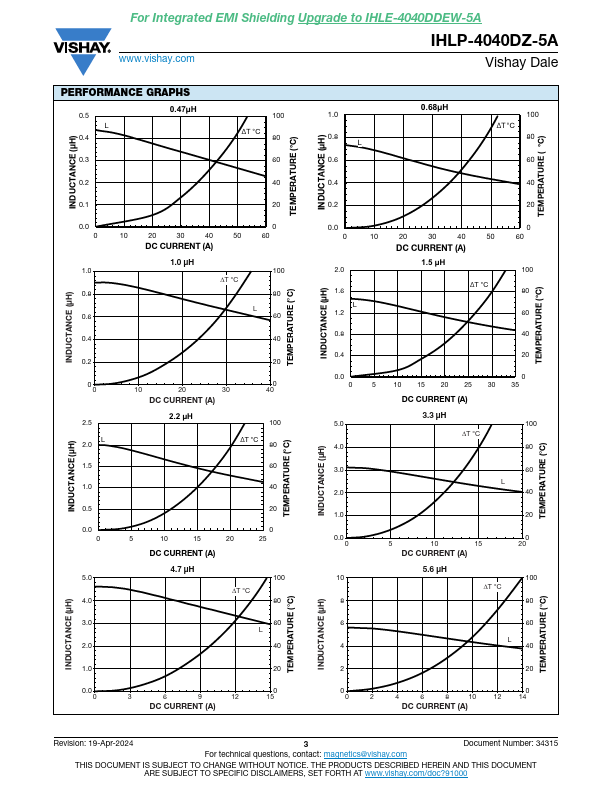

www.vishay.com IHLP-4040DZ-5A Vishay Dale Low Profile, High Current IHLP® Inductors Manufactured under one or more of the following: US Patents; 6,198,375/6,204,744/6,449,829/6,460,244. Several foreign patents, and other patents pending. STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (m) (m) (A) (3) (A) (4) (MHz) 0.47 1.55 1.66 30.0 28.5 72.1 1.

IHLP-4040DZ-5A Features

* High temperature, up to 155 °C

* Shielded construction

* Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up the SRF (see Standard Electrical Specifications table).

* Lowest DCR/μH, in this package size

* Handles high transie
