IHLP-4040DZ-A1, Inductors

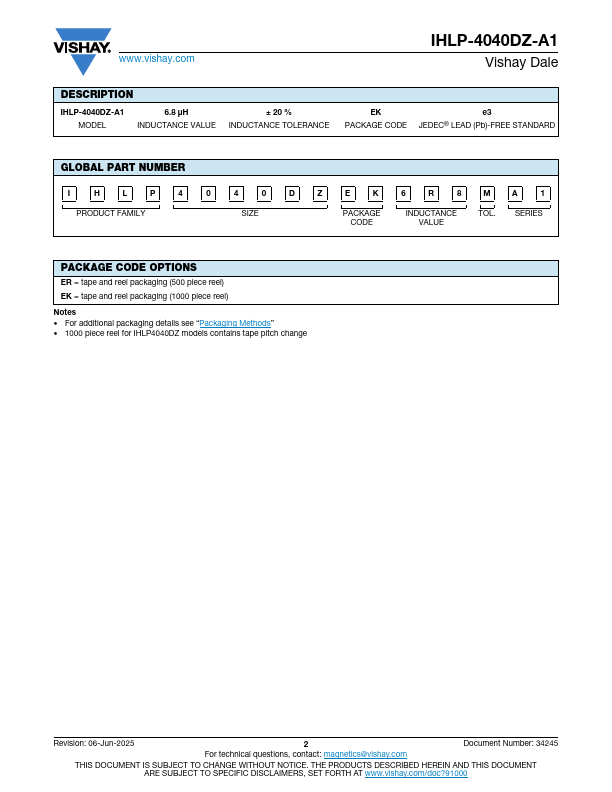

IHLP-4040DZ-A1 6.8 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L P 4 0 4 0 D Z E R 6 R 8 M A 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.
SERIES Revision: 18-Sep-15 1 Doc

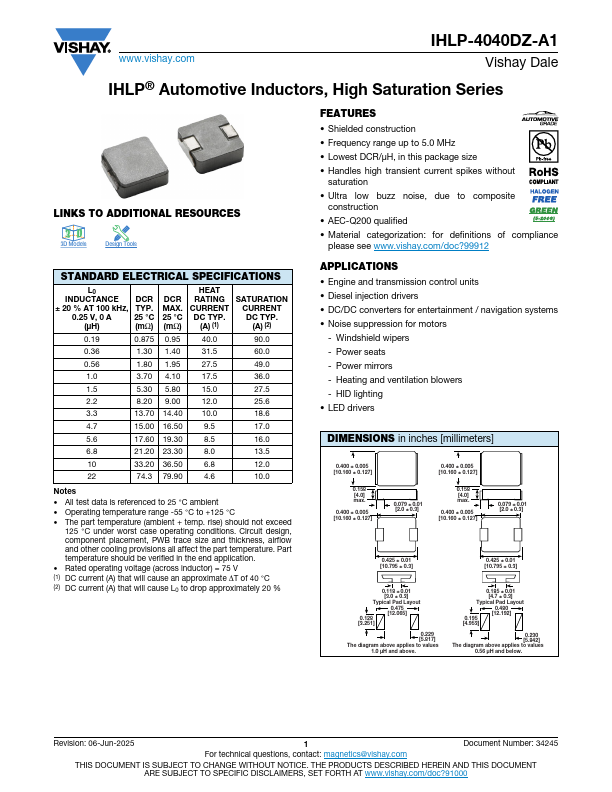

www.vishay.com IHLP-4040DZ-A1 Vishay Dale Low Profile, High Current IHLP® Inductors Manufactured under one or more of the following: US Patents; 6,198,375/6,204,744/6,449,829/6,460,244. Several foreign patents, and other patents pending.

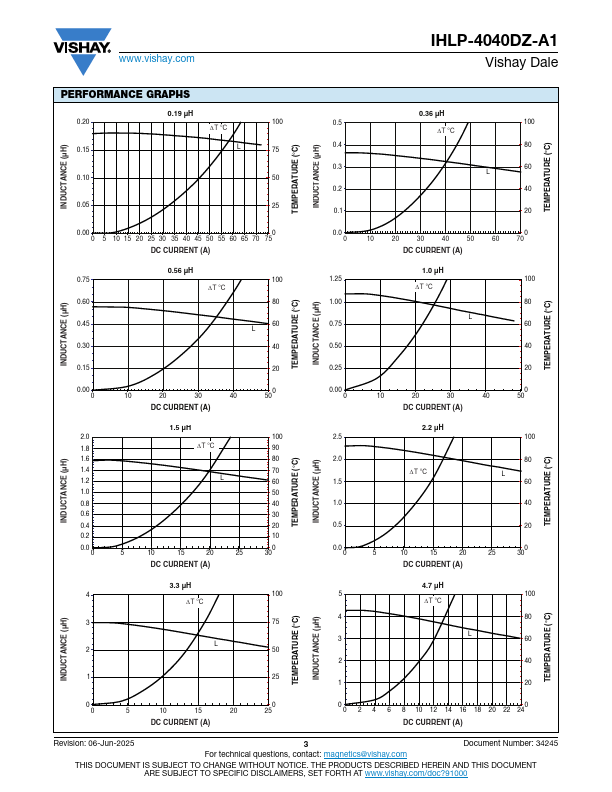

STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE DCR ± 20 % AT 100 kHz, TYP.
0.25 V, 0 A 25 °C (μH) (m) DCR MAX.
25 °C (m) HEAT RATING CURRENT DC TYP.
(A) (3) SATURATION CURRENT DC TYP.
(A) (4) 0.19 0.875 0.95 40.0 90.0 0.36 1.30 1.40 31
IHLP-4040DZ-A1 Features
* Shielded construction
* Frequency range up to 5.0 MHz
* Lowest DCR/μH, in this package size
* Handles high transient current spikes without saturation
* Ultra low buzz noise, due to composite construction
* AEC-Q200 qualified
* Material categ
