IRFD220 Datasheet - Vishay

Power MOSFET

IRFD220 Features

* Dynamic dV/dt rating

* Repetitive avalanche rated

* For automatic insertion

* End stackable

* Fast switching

* Ease of paralleling

* Simple drive requirements

* Material categorization: for definitions of compliance please see www.vis

IRFD220 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The 4 pin DIP package is a low cost machine-insertable case style which can be stacked in multiple combinations on standard.

IRFD220 Datasheet (0.97 MB)

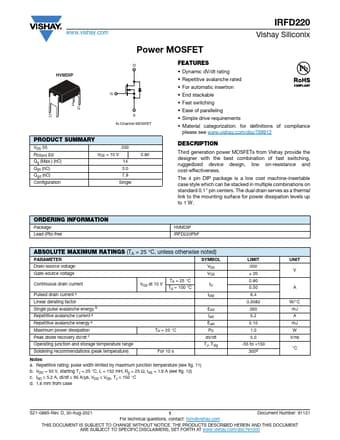

IRFD220 Datasheet Preview — Preview of IRFD220 PDF

Datasheet Details

Part number:

IRFD220

Manufacturer:

Vishay ↗

File Size:

0.97 MB

Description:

Power mosfet.
www.vishay.com IRFD220 Vishay Siliconix Power MOSFET D HVMDIP S G D G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs.
