V12P10 - Trench MOS Barrier Schottky Rectifier

V12P10 Description

www.vishay.com V12P10 Vishay General Semiconductor High Current Density Surface Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.

V12P10 Features

* Very low profile - typical height of 1.1 mm
* Ideal for automatic placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

V12P10 Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters and polarity protection applications. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM 12 A 100 V 200 A EAS 100 mJ VF at IF = 12 A TJ max. Package Circuit configuration 0.58 V 150 °C SMPC (TO-277A) Single MECHANICAL DATA

📥 Download Datasheet

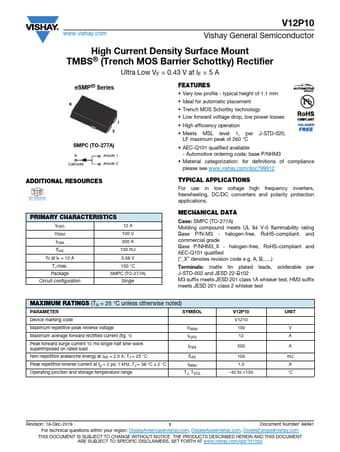

Preview of V12P10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V12P10
Manufacturer
Vishay ↗
File Size
99.59 KB
Datasheet
V12P10-Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
