V12P45 Trench MOS Barrier Schottky Rectifier

www.vishay.com V12P45 Vishay General Semiconductor High Current Density Surface Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.

V12P45-Vishay.pdf

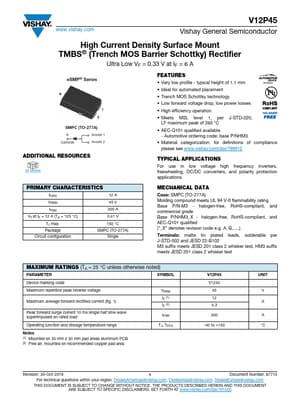

V12P45 Datasheet Preview — Preview of V12P45 PDF

Datasheet Details

Part number:

V12P45

Manufacturer:

Vishay ↗

File Size:

98.66 KB

Description:

Trench MOS Barrier Schottky Rectifier

Features

* Very low profile - typical height of 1.1 mm Available
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak

Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. PRIMARY CHARACTERISTICS IF(AV) 12 A VRRM 45 V IFSM 200 A VF at IF = 12 A (TA = 125 °C) 0.41 V TJ max. Package 150 °C SMPC (TO-277A) Circuit configuration Single MECHAN
