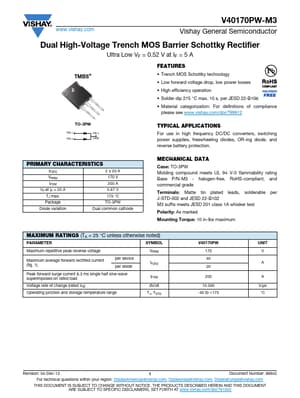

datasheet Preview Page 1 from Datasheet4u.com

V40170PW-M3 Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V40170PW-M3 Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.52 V at IF = 5 A T.

V40170PW-M3-Vishay.pdf

V40170PW-M3 Datasheet Preview — Preview of V40170PW-M3 PDF

Datasheet Details

Part number:

V40170PW-M3

Manufacturer:

Vishay ↗

File Size:

83.69 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 TO-3PW PIN

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 20 A TJ max. Package 2 x 20 A 170 V 200 A 0.67 V 175 °C TO-3PW Diode variation Dual common cathode MECHAN
