V40100C, Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V40100C, VI40100C Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.38 V at IF = .

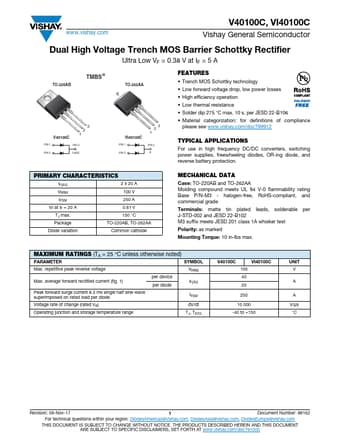

datasheet Preview Page 1 from Datasheet4u.com

V40100C_VishaySiliconix.pdf

V40100C Datasheet Preview — Preview of V40100C PDF

Datasheet Details

Part number:

V40100C

Manufacturer:

Vishay ↗ Siliconix

File Size:

136.87 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Low thermal resistance
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material categorization: For definitions o

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM 2 x 20 A 100 V 250 A VF at IF = 20 A 0.61 V TJ max. Package 150 °C TO-220AB, TO-262AA Diode variation Common cath
