V40100P, Dual High-Voltage Trench MOS Barrier Schottky Rectifier

New Product V40100P www.DataSheet4U.com Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.372 V .

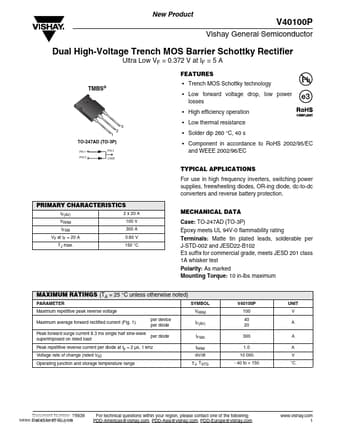

datasheet Preview Page 1 from Datasheet4u.com

V40100P_VishaySiliconix.pdf

V40100P Datasheet Preview — Preview of V40100P PDF

Datasheet Details

Part number:

V40100P

Manufacturer:

Vishay ↗ Siliconix

File Size:

124.73 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* TMBS®
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation 3 2 1
* Low thermal resistance
* Solder dip 260 °C, 40 s
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC TYPICAL APPLICAT

Applications

* For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection. TO-247AD (TO-3P) PIN 1 PIN 3 PIN 2 CASE PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 20 A TJ max. 2 x 20 A 100 V 300 A 0.60 V 150 °C MECHANI
