VFT1045BP Trench MOS Barrier Schottky Rectifier

VFT1045BP Description

VFT1045BP www.vishay.com Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0.41 .

VFT1045BP Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2011/65/EU 2 1
* Halogen-free according to IEC 61249-2

VFT1045BP Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. MECHANICAL DATA PRIMARY CHARACTERISTICS IF(DC) VRRM IFSM VF at IF = 10 A TOP max. (AC mode) TJ max. (DC forward current) 10 A 45 V 100 A 0.52 V 150 °C 200 °C Case: ITO-220AC Molding

📥 Download Datasheet

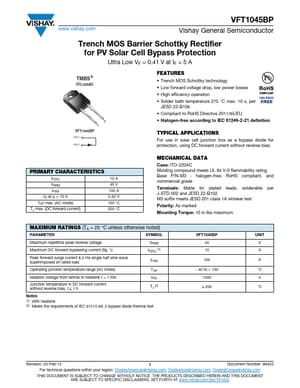

Preview of VFT1045BP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VFT1045BP
Manufacturer
Vishay ↗
File Size
141.01 KB
Datasheet
VFT1045BP_Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
