VFT1060C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.DataSheet.co.kr New Product VFT1060C Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.39 V.

VFT1060C_Vishay.pdf

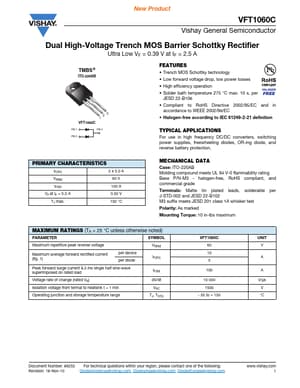

VFT1060C Datasheet Preview — Preview of VFT1060C PDF

Datasheet Details

Part number:

VFT1060C

Manufacturer:

Vishay ↗

File Size:

135.69 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
* Halog

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 5.0 A TJ max. 2 x 5.0 A 60 V 100 A 0.50 V 150 °C MECHANICAL DATA Case: ITO-220AB Molding compound meets UL 94
