VFT1045C Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

VFT1045C Description

New Product VFT1045C Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.34 V at IF = 2.5 A TMBS ® .

VFT1045C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
* Halog

VFT1045C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 5.0 A TJ max. 2 x 5.0 A 45 V 100 A 0.41 V 150 °C MECHANICAL DATA Case: ITO-220AB Molding compound meets UL 94

📥 Download Datasheet

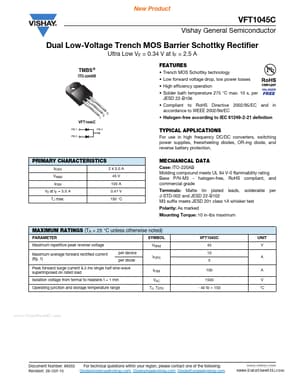

Preview of VFT1045C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VFT1045C
Manufacturer
Vishay ↗ Siliconix
File Size
97.80 KB
Datasheet
VFT1045C_VishaySiliconix.pdf
Description
Dual Low-Voltage Trench MOS Barrier Schottky Rectifier
