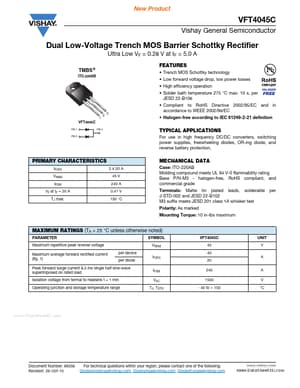

datasheet Preview Page 1 from Datasheet4u.com

VFT4045C Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

New Product VFT4045C Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.28 V at IF = 5.0 A TMBS ® .

VFT4045C_VishaySiliconix.pdf

VFT4045C Datasheet Preview — Preview of VFT4045C PDF

Datasheet Details

Part number:

VFT4045C

Manufacturer:

Vishay ↗ Siliconix

File Size:

97.87 KB

Description:

Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
* Halog

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 20 A TJ max. 2 x 20 A 45 V 240 A 0.41 V 150 °C MECHANICAL DATA Case: ITO-220AB Molding compound meets UL 94 V
