VFT2045C Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

VFT2045C Description

New Product VFT2045C Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.33 V at IF = 5.0 A TMBS ® .

VFT2045C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
* Halog

VFT2045C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 10 A TJ max. 2 x 10 A 45 V 160 A 0.41 V 150 °C MECHANICAL DATA Case: ITO-220AB Molding compound meets UL 94 V

📥 Download Datasheet

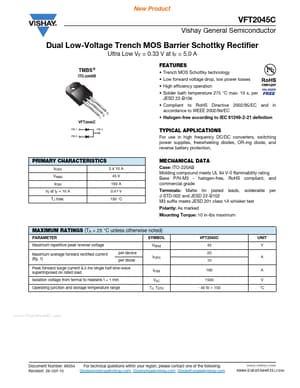

Preview of VFT2045C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VFT2045C
Manufacturer
Vishay ↗ Siliconix
File Size
97.74 KB
Datasheet
VFT2045C_VishaySiliconix.pdf
Description
Dual Low-Voltage Trench MOS Barrier Schottky Rectifier
