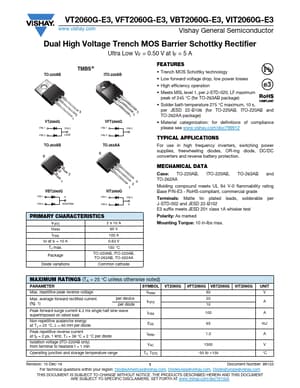

datasheet Preview Page 1 from Datasheet4u.com

VFT2060G-E3 Dual High Voltage Trench MOS Barrier Schottky Rectifier

VT2060G-E3, VFT2060G-E3, VBT2060G-E3, VIT2060G-E3 www.vishay.com Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifi.

VFT2060G-E3-Vishay.pdf

VFT2060G-E3 Datasheet Preview — Preview of VFT2060G-E3 PDF

Datasheet Details

Part number:

VFT2060G-E3

Manufacturer:

Vishay ↗

File Size:

143.15 KB

Description:

Dual High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for

Applications

* For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters and reverse battery protection. 2 1 VBT2060G PIN 1 K PIN 2 HEATSINK VIT2060G 3 2 1 PIN 1 PIN 2 PIN 3 K PRIMARY
