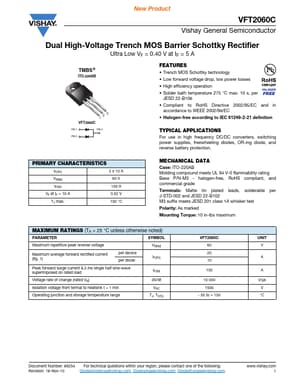

datasheet Preview Page 1 from Datasheet4u.com

VFT2060C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.DataSheet.co.kr New Product VFT2060C Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.40 V.

VFT2060C_Vishay.pdf

VFT2060C Datasheet Preview — Preview of VFT2060C PDF

Datasheet Details

Part number:

VFT2060C

Manufacturer:

Vishay ↗

File Size:

135.71 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
* Halog

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 10 A TJ max. 2 x 10 A 60 V 150 A 0.52 V 150 °C MECHANICAL DATA Case: ITO-220AB Molding compound meets UL 94 V
