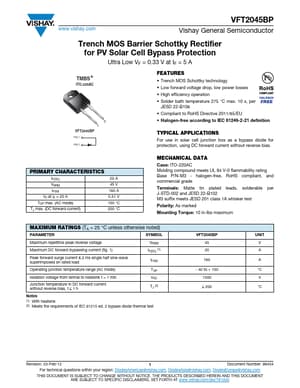

datasheet Preview Page 1 from Datasheet4u.com

VFT2045BP Trench MOS Barrier Schottky Rectifier

VFT2045BP www.vishay.com Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0.33 .

VFT2045BP_Vishay.pdf

VFT2045BP Datasheet Preview — Preview of VFT2045BP PDF

Datasheet Details

Part number:

VFT2045BP

Manufacturer:

Vishay ↗

File Size:

140.94 KB

Description:

Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2011/65/EU 2 1
* Halogen-free according to IEC 61249-2

Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. MECHANICAL DATA PRIMARY CHARACTERISTICS IF(DC) VRRM IFSM VF at IF = 20 A TOP max. (AC mode) TJ max. (DC forward current) 20 A 45 V 160 A 0.51 V 150 °C 200 °C Case: ITO-220AC Molding
