EDI7F341MV

1Mx32 FLASH MODULE

EDI7F341MV Features

* n n n n 1Mx32 and 2x1Mx32 Densities Based on Intel's 28F008S3 Flash Device Fast Read Access Time - 120ns Flexible Smart Voltage n n n n n n n n n n n 3.0 - 3.6V Program/Erase 3.0 - 3.6V Read 30mA per Device Active Current 10µA per Device CMOS Standby Current Low Power Dissipation Typical Endurance

EDI7F341MV General Description

The EDI7F341MV and EDI7F2341MV are organized as one and two banks of 1Mx32 respectively. The modules are based on Intel's 28F008S3 - 1Mx8 Flash device in TSOP packages which are mounted on a FR4 substrate. Both modules offer access times between 120 and 150ns allowing for operation of high-speed mic.

EDI7F341MV Datasheet (294.10 KB)

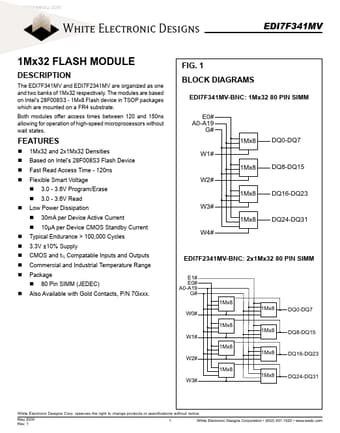

Preview of EDI7F341MV PDF

Datasheet Details

Part number:

EDI7F341MV

Manufacturer:

White Electronic Designs

File Size:

294.10 KB

Description:

1mx32 flash module.
