EDI7F342MV Datasheet - White Electronic Designs

EDI7F342MV 2Mx32 FLASH MODULE

The EDI7F342MV and EDI 7F2342MV are organized as one and two banks of 2Mx32 respectively. The modules are based on Intel's 28F016S3 2Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. Both modules offer access times between 120 and 150ns allowing for operation of high-speed mic.

EDI7F342MV Features

* 2Mx32 and 2x2Mx32 Densities Based on Intel's 28F016S3 Flash Device Fast Read Access Time - 120ns Low Power Dissipation

* 30mA per Device Active Current

* 10A per Device CMOS Standby Current

* Typical Endurance >100,000 Cycles Single 3

EDI7F342MV_WhiteElectronicDesigns.pdf

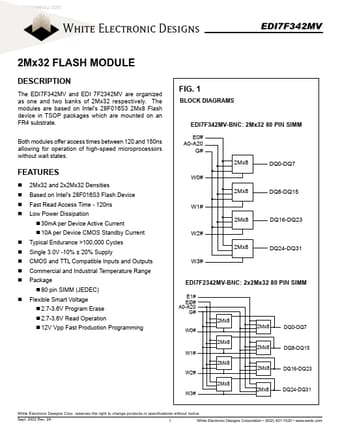

Preview of EDI7F342MV PDF
EDI7F342MV Datasheet Preview Page 2 EDI7F342MV Datasheet Preview Page 3

Datasheet Details

Part number:

EDI7F342MV

Manufacturer:

White Electronic Designs

File Size:

331.31 KB

Description:

2mx32 flash module.
