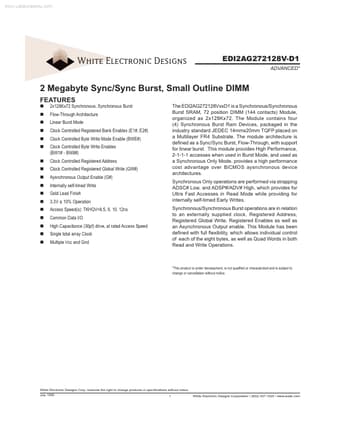

EDI2AG272128V-D1 2 Megabyte Sync/Sync Burst

DIMM Pins Symbol A0-A16 Type Input Synchronous Input Synchronous Description EDI2AG272128V-D1 ADVANCED 3, 6, 7, 10, 11, 14 15, 18, 19, 20, 17 16, 13, 12, 9, 8, 5 33, 47, 61, 75, 89, 103, 117, 131 Addresses: These inputs are registered and must meet the setup and hold times around the rising edge.

EDI2AG272128V-D1 Features

* 2x128Kx72 Synchronous, Synchronous Burst Flow-Through Architecture Linear Burst Mode Clock Controlled Registered Bank Enables (E1#, E2#) Clock Controlled Byte Write Mode Enable (BWE#) Clock Controlled Byte Write Enables (BW1# - BW8#) Clock Controlled Registered Address Clock Controlled Registered Gl
