EDI7F2342MC Datasheet - White Electronic Designs

2Mx32 FLASH MODULE

EDI7F2342MC Features

* 2Mx32 and 2x2Mx32 Densities

* Based on Intel's E28F016S5 Flash Device

* Fast Read Access Time - 90ns

* 5V - Only Reprogramming

* 12V VPP Production Programming

* Low Power Dissipation

* 35mA per Device Active Write Current

* 25µA per Device CMOS Standby Current

EDI7F2342MC General Description

The EDI7F342MC and EDI7F2342MC are organized as one and two banks of 2Mx32 respectively. The modules are based on Intel's E28F016S5 2Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate Both modules offer access times between 90 and 150ns allowing for operation of high-speed micro.

EDI7F2342MC Datasheet (332.40 KB)

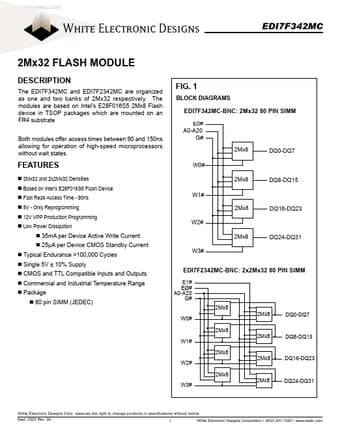

Preview of EDI7F2342MC PDF
