EDI7F2332MV Datasheet - White Electronic Designs

EDI7F2332MV 2Mx32 FLASH MODULE

The EDI7F332MV and EDI7F2332MV are organized as one and two banks of 2Mx32 respectively. The modules are based on AMDs AM29LV017B- 2Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. Both modules offer access times between 90 and 120ns allowing for operation of high-speed micro.

EDI7F2332MV Features

* 2Mx32 and 2x2Mx32 Densities Based on AMD - AM29LV017B Flash Device Fast Read Access Time - 90ns 3.3V-Only Reprogramming Sector Erase Architecture Uniform sectors of 64 Kbytes each Any combination of sectors can be erased Supports full chip erase Sector Protection Hardware method that disables any co

EDI7F2332MV_WhiteElectronicDesigns.pdf

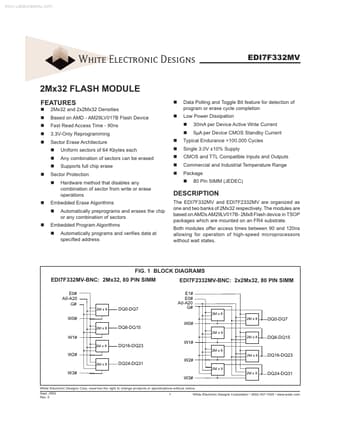

Preview of EDI7F2332MV PDF
EDI7F2332MV Datasheet Preview Page 2 EDI7F2332MV Datasheet Preview Page 3

Datasheet Details

Part number:

EDI7F2332MV

Manufacturer:

White Electronic Designs

File Size:

147.43 KB

Description:

2mx32 flash module.
