EDI2CG472128V

4 Megabyte Sync/Sync Burst

EDI2CG472128V Features

* 4x128Kx72 Synchronous, Synchronous Burst Flow-Through Architecture Linear and Sequential Burst Support via MODE pin Clock Controlled Registered Module Enable (EM#) Clock Controlled Registered Bank Enables (E1#, E2#, E3#, E4#) Clock Controlled Byte Write Mode Enable (BWE#) Clock Controlled Byte Write

EDI2CG472128V General Description

The EDI2CG472128VxxD2 is a Synchronous/Synchronous Burst SRAM, 84 position Dual Key; Double High DIMM (168 contacts) Module, organized as 4x128Kx72. The Module contains eight (8) Synchronous Burst Ram Devices, packaged in the industry standard JEDEC 14mmx20mm TQFP placed on a Multilayer FR4 Substrat.

EDI2CG472128V Datasheet (217.72 KB)

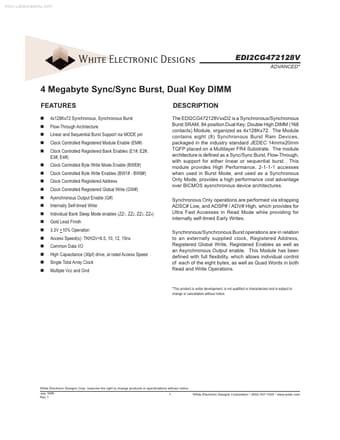

Preview of EDI2CG472128V PDF

Datasheet Details

Part number:

EDI2CG472128V

Manufacturer:

White Electronic

File Size:

217.72 KB

Description:

4 megabyte sync/sync burst.
