EDI2CG472256V Datasheet - White Electronic

EDI2CG472256V 8 Megabyte Sync/Sync Burst

The EDI2CG472256VxxD2 is a Synchronous/Synchronous Burst SRAM, 84 position Dual Key; Double High DIMM (168 contacts) Module, organized as 4x256Kx72. The Module contains sixteen (16) Synchronous Burst Ram Devices, packaged in the industry standard JEDEC 14mmx20mm TQFP placed on a Multilayer FR4 Subst.

EDI2CG472256V Features

* 4x256Kx72 Synchronous, Synchronous Burst Flow-Through Architecture Linear and Sequential Burst Support via MODE pin Clock Controlled Registered Module Enable (EM#) Clock Controlled Registered Bank Enables (E1#, E2#, E3#, E4#) Clock Controlled Byte Write Mode Enable (BWE#) Clock Controlled Byte Write

EDI2CG472256V Datasheet (228.68 KB)

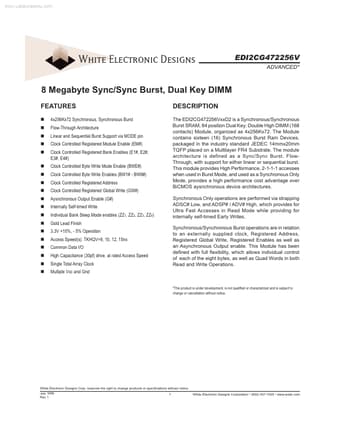

Preview of EDI2CG472256V PDF
EDI2CG472256V Datasheet Preview Page 2 EDI2CG472256V Datasheet Preview Page 3

Datasheet Details

Part number:

EDI2CG472256V

Manufacturer:

White Electronic

File Size:

228.68 KB

Description:

8 megabyte sync/sync burst.
