EDI7F2341MC 1Mx32 FLASH MODULE

The EDI7F341MC and EDI7F2341MC are organized as one and two banks of 1Mx32 respectively. The modules are based on Intel's E28F008SA - 1Mx8 Flash device in TSOP packages which are mounted on a FR4 substrate. Both modules offer access times between 90 and 150ns allowing for operation of high-speed mic.

EDI7F2341MC Features

* n n n n n 1Mx32 and 2x1Mx32 Densities Based on Intel's E28F008SA Flash Device Fast Read Access Time - 90ns 5V-Only Reprogamming or 12V Reprogram. Low Power Dissipation n n n n n n n 60mA per Device Active Current 10µA per Device CMOS Standby Current Typical Endurance > 100,000 Cycles Single 5V ± 10

EDI7F2341MC_WhiteElectronicDesigns.pdf

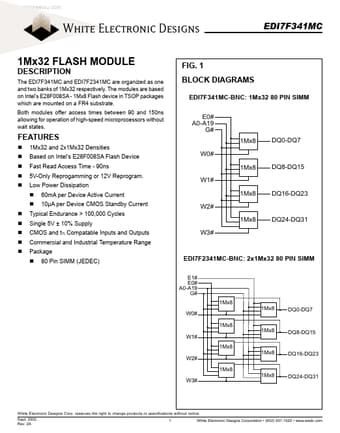

Preview of EDI7F2341MC PDF
EDI7F2341MC Datasheet Preview Page 2 EDI7F2341MC Datasheet Preview Page 3

Datasheet Details

Part number:

EDI7F2341MC

Manufacturer:

White Electronic Designs

File Size:

296.81 KB

Description:

1mx32 flash module.
