EDI2CG272128V

Sync/Sync Burst SRAM SO-DIMM

EDI2CG272128V Features

* 2x128Kx72 Synchronous, Synchronous Burst Flow-Through Architecture Linear and Sequential Burst Support via MODE pin Access Speed(s): TKHQV = 8.5, 9, 12, 15ns Clock Controlled Registered Bank Enables (E1#, E2#) Clock Controlled Registered Address Clock Controlled Registered Global Write (GW#) Aysnchr

EDI2CG272128V General Description

The EDI2CG272128VxxD1 is a Synchronous/Synchronous Burst SRAM, 72 position DIMM (144 contacts) Module, small outline. The Module contains four (4) Synchronous Burst Ram Devices, packaged in the industry standard JEDEC 14mmx20mm TQFP placed on a Multilayer FR4 Substrate. The module architecture is de.

EDI2CG272128V Datasheet (190.78 KB)

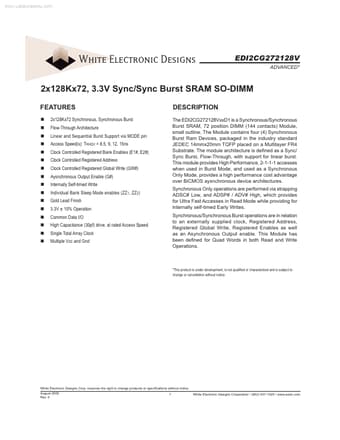

Preview of EDI2CG272128V PDF

Datasheet Details

Part number:

EDI2CG272128V

Manufacturer:

White Electronic

File Size:

190.78 KB

Description:

Sync/sync burst sram so-dimm.
