EDI7F2331MC Datasheet - White Electronic Designs Corporation

1Mx32 FLASH MODULE

EDI7F2331MC Features

* 1Mx32 and 2x1Mx32 Densities Based on AMD - AM29F080 Flash Device Fast Read Access Time - 80ns 5V Only Reprogramming Sector Erase Architecture

* Uniform sectors of 64 Kbytes each Any combination of sectors can be erased Also supports ful

EDI7F2331MC General Description

The EDI7F331MC and EDI7F2331MC are organized as one and two banks of 1Mx32 respectively. The modules are based on AMDs AM29F080 - 1Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. Both modules offer access times between 80 and 150ns allowing for operation of high-speed microp.

EDI7F2331MC Datasheet (294.54 KB)

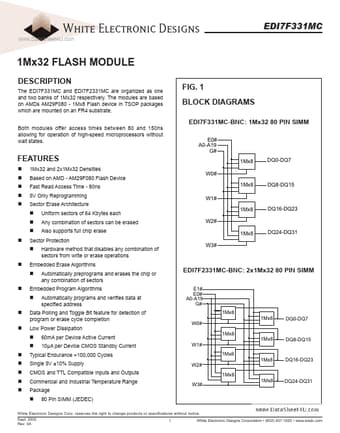

EDI7F2331MC Datasheet Preview — Preview of EDI7F2331MC PDF

Datasheet Details

Part number:

EDI7F2331MC

Manufacturer:

White Electronic Designs Corporation

File Size:

294.54 KB

Description:

1mx32 flash module.
