WSD90P06DN56 - P-Channel MOSFET

Winsok

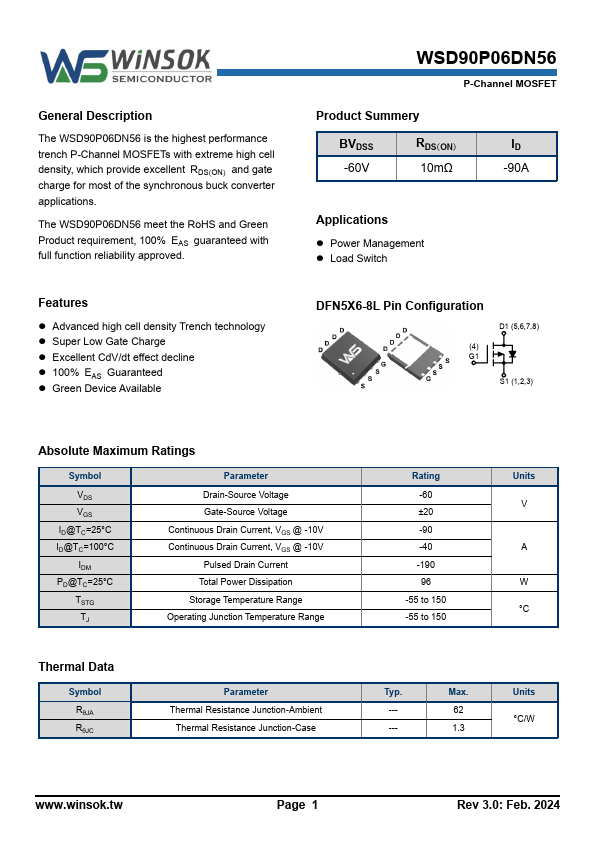

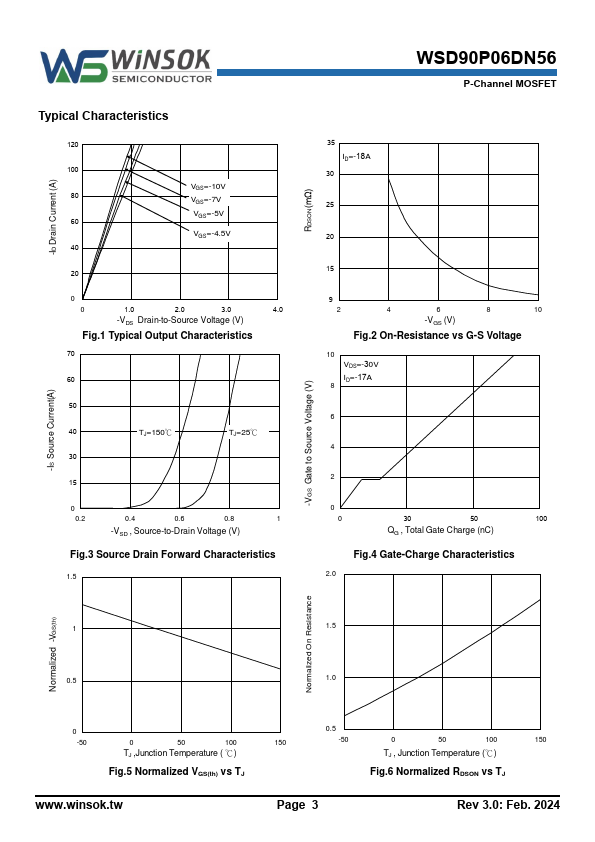

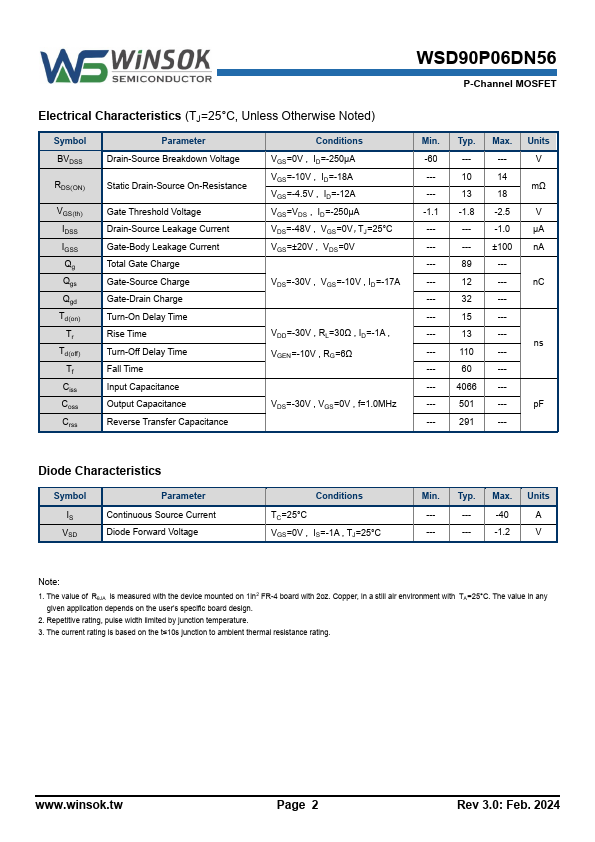

WSD90P06DN56 Datasheet Preview — Preview of WSD90P06DN56 PDF

Datasheet Details

Part number	WSD90P06DN56
Manufacturer	Winsok
File Size	740.63 KB
Description	P-Channel MOSFET
Datasheet	WSD90P06DN56-Winsok.pdf

WSD90P06DN56 Product details

Description

The WSD90P06DN56 is the highest performance trench P-Channel MOSFETs with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.

Features

Advanced high cell density Trench technology.
Super Low Gate Charge.
Excellent CdV/dt effect decline.
100% EAS Guaranteed.
Green Device Available WSD90P06DN56 P-Channel MOSFET Product Summery BVDSS -60V RDS(ON) 10mΩ ID -90A.
