WSF4012

P & N-Channel MOSFET

WSF4012 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available BVDSS 40V -40V RDSON 16mΩ 30mΩ ID 30A -20A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networkin

WSF4012 General Description

Product Summery The WSF4012 is the highest performance trench N-ch and P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF4012 meet the RoHS and Green Product requirement 100% EAS guaranteed wi.

WSF4012 Datasheet (722.92 KB)

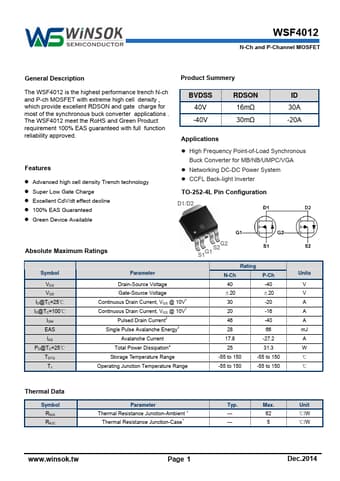

Preview of WSF4012 PDF

Datasheet Details

Part number:

WSF4012

Manufacturer:

Winsok

File Size:

722.92 KB

Description:

P & n-channel mosfet.
