WSF4042 Datasheet - Winsok

WSF4042 N-Ch and P-Channel MOSFET

The WSF4042 is the highest performance trench N-ch and P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF4042 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function r.

WSF4042 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 40V -40V RDSON 14mΩ 16mΩ ID 20A -20A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMP

WSF4042-Winsok.pdf

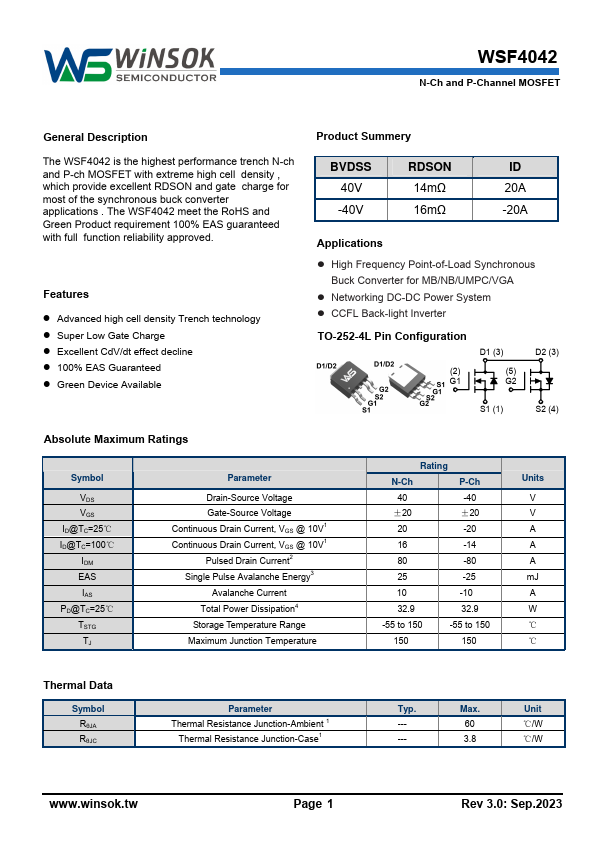

Preview of WSF4042 PDF

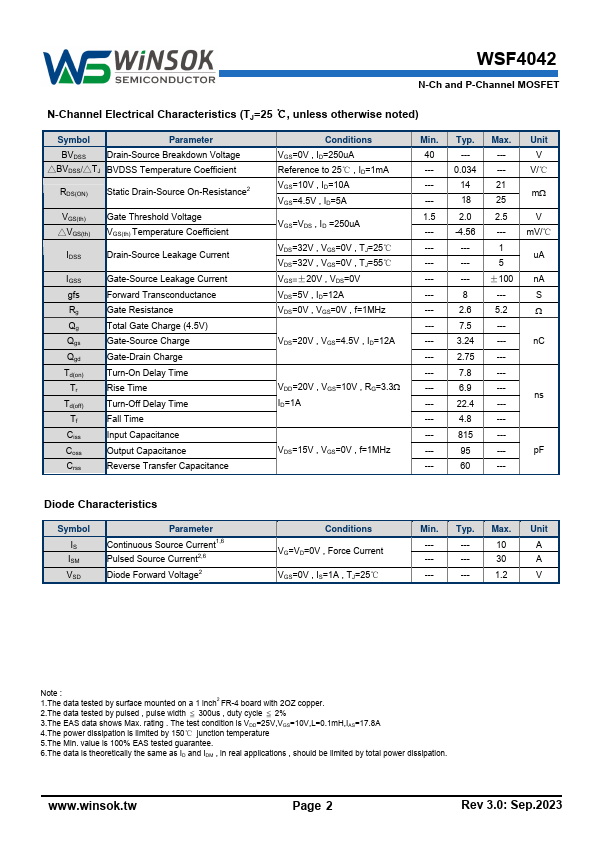

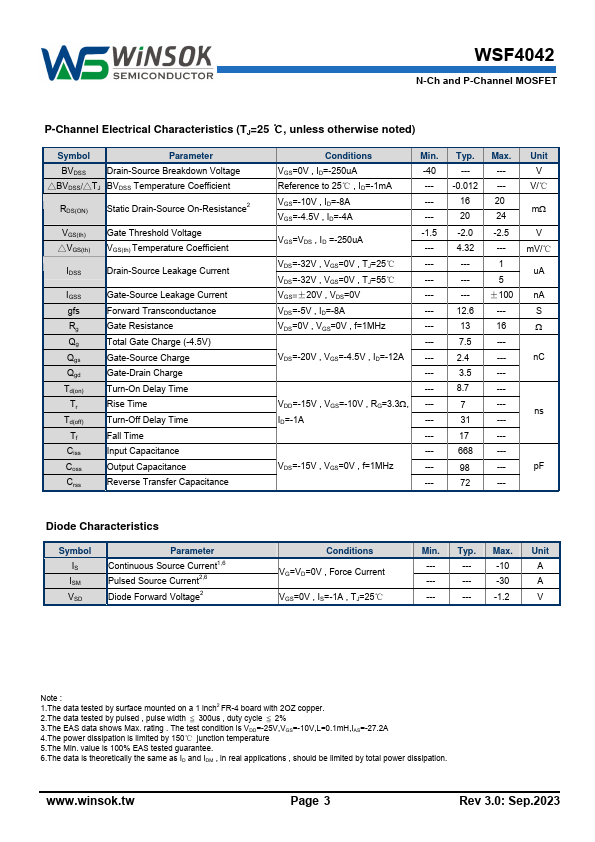

WSF4042 Datasheet Preview Page 2 WSF4042 Datasheet Preview Page 3

Datasheet Details

Part number:

WSF4042

Manufacturer:

Winsok

File Size:

2.74 MB

Description:

N-ch and p-channel mosfet.
