WSF4012B Datasheet - Winsok

WSF4012B N-Ch and P-Channel MOSFET

The WSF4012B is the highest performance trench Nch and P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF4012B meet the RoHS and Green Product requirement 100% EAS guaranteed with full function .

WSF4012B Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 40V -40V RDSON 18mΩ 32mΩ ID 28A -20A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMP

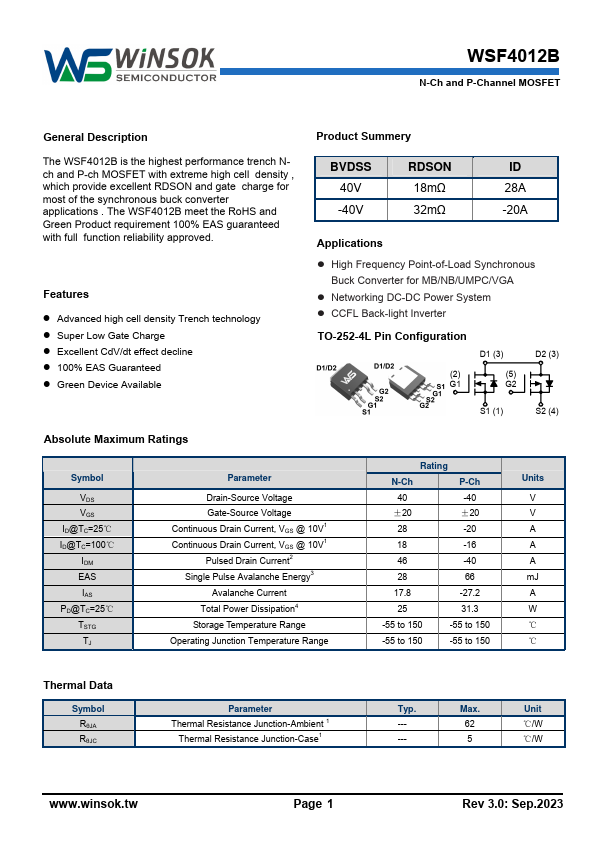

WSF4012B-Winsok.pdf

Preview of WSF4012B PDF

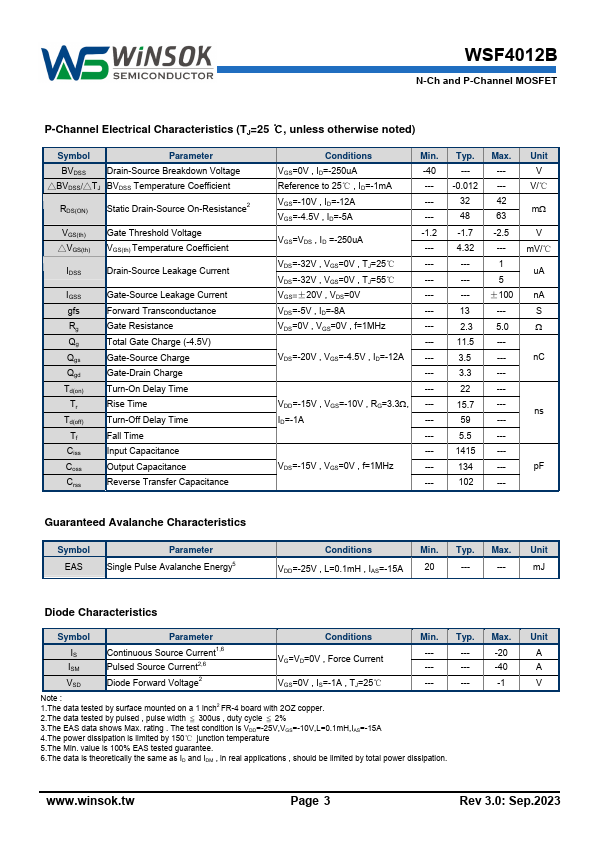

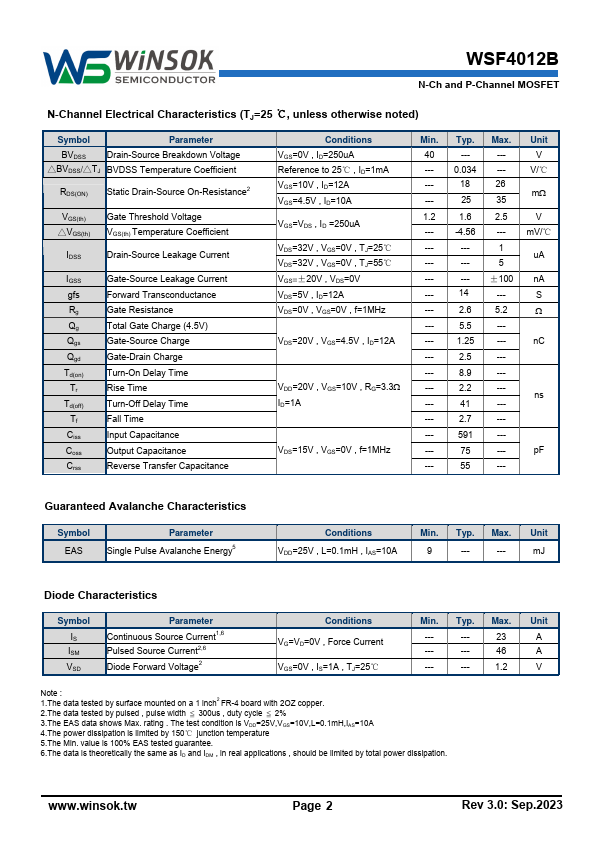

WSF4012B Datasheet Preview Page 2 WSF4012B Datasheet Preview Page 3

Datasheet Details

Part number:

WSF4012B

Manufacturer:

Winsok

File Size:

2.30 MB

Description:

N-ch and p-channel mosfet.
