WST2318 - N-Ch MOSFET

Name: WST2318
SKU: WST2318-1594546

Winsok

📥 Download Datasheet

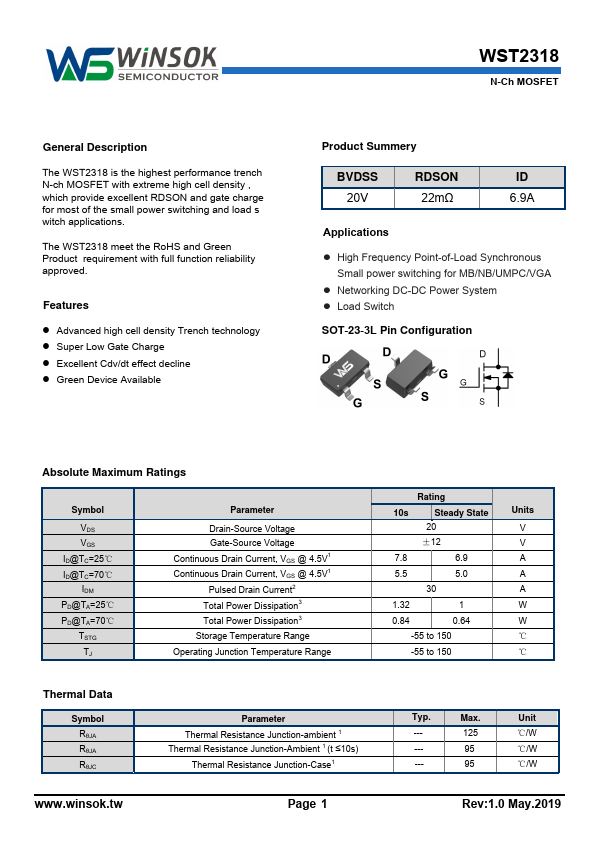

WST2318 Datasheet Preview — Preview of WST2318 PDF

Datasheet Details

Part number	WST2318
Manufacturer	Winsok
File Size	975.56 KB
Description	N-Ch MOSFET
Datasheet	WST2318-Winsok.pdf

WST2318 Product details

Description

The WST2318 is the highest performance trench N-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load s witch applications.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available WST2318 N-Ch MOSFET Product Summery BVDSS 20V RDSON 22mΩ ID 6.9A.
